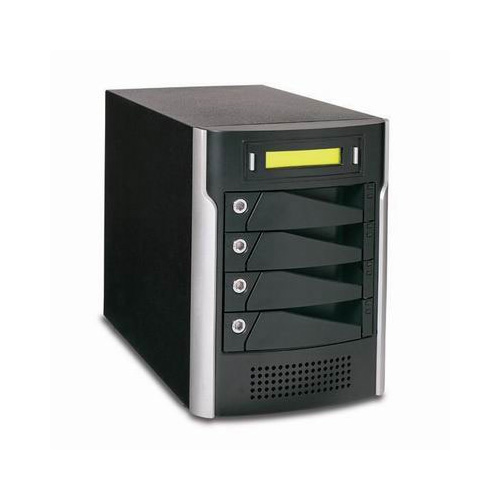

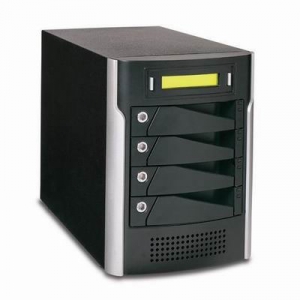

ACS-77111 은 RAID Subsystem으로 external storage 및 high performance 시스템으로 cost effective한 솔루션 입니다. 100% hardware RAID processoing을 통하여 USB, Firewire를 통하여 호스트 컴퓨터에 연결할 수 있도록 설계되어있습니다. 이런 연결방식을 통하여 사용자는 매우 쉽게 ACS-77111을 사용할 수 있습니다. ACS-77111은 RAID 0, RAID5 를 지원하며 professional 한 multimedia editing 이나 압축되지 않은 video data백업용으로 사용할 수 있는 최적의 솔루션 입니다. *ACS-77111 은 OEM 전용입니다.
Host interfaces
- eSATA 1.5Gb (transfer rate up to 150MBps)
Disk interfaces
- Four 3.5" SATA2 3Gb disk drives
RAID functions
- Hardware-accelerated RAID with data buffering
- Multiple RAID levels: 0, 10 , 5, and 5S (5+spare) by switch setting
- Automatically online fast disk data rebuilding
- Automatic disk failure detection
- Online bad sector recovery and reallocation
- Bad sector alert Hot swappable disks
Capacity
- Up to 3TB (RAID 0)
- Up to 2.25TB (RAID 5)
- Up to 1.5 TB (RAID 10, 5S)
Management
- Driverless: need no driver on host side
- LCD panel for operation status display
- LED indicators for disk status display
- Event notification through audible alarm, e-mail, and pop-up windows
- NVRAM for preserving system state
- Durable and removable cooling fan module
- Event logging with real-time clock
- Event notification by audible alarm
- Durable and removable FAN module
- Fan and system temperature monitoring
- Open API for proprietary GUI and integration
- Java-based GUI for system status monitoring and event notification by email
- Open API for proprietary GUI and integration
- RS232 interface for firmware upgrade and GUI
Dimensions
- 286.5 (L) x 152.8 (W) x 206.4 (H) mm
- 11.28 (L) x 6.02 (W) x 8.13 inch
Weight
- 6.3KG / 13.89 lbs (w/o drives)
Acoustic
Certification Compliance
- FCC, CE, UL, C-tick, PSE, VCCI, MIC approval
- RoHS compliant
Warranty
|
